Our company specialize in design, production, and installation of various functional mixing and dispersing equipment, and can customize according to customer requirements or drawings.
Function and Adv.
Easy to move and clean
Combined with a stationed mixer, it can be flexibly used in various mixing and dispersing production. scenarios;
Multiple specifications to choose from, high cost-effectiveness
Customizable features:

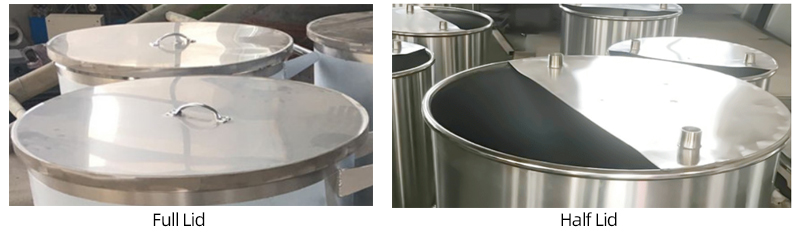

Tank Lid: No Lid/ Full Lid/Half Lid
Jacket：Yes/No

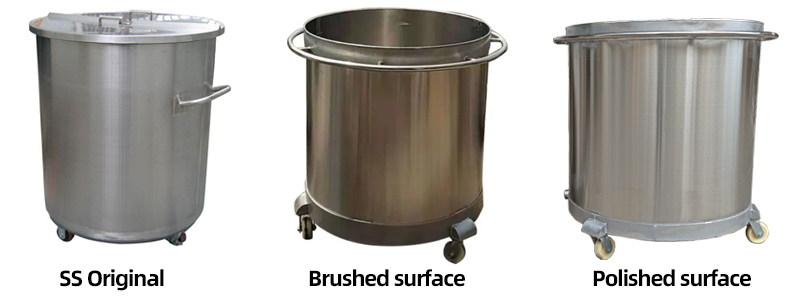

Tank Outer Surface Treatment：Polished/Mirror/Brushed and Original
Outlet valve Material: SUS 304/ iron casting/ABS

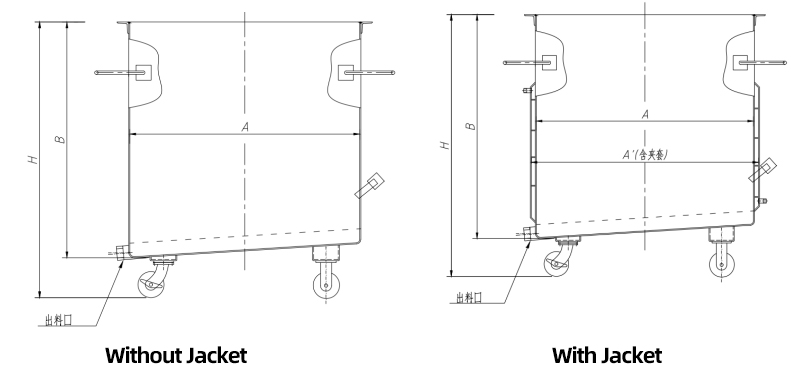

Mobile Tank Parameters
| Tank Full Volume | Dimension | H2 | Made | Thickness | Outlet size |
|---|---|---|---|---|---|
| 200L | φ650*650 | 820 | SS304/CS | 1.2-2mm | 2 inch |
| 300L | φ750*700 | 900 | SS304/CS | 1.2-3mm | 2 inch |
| 400L | φ800*800 | 980 | SS304/CS | 1.2-3mm | 2 inch |
| 500L | φ900*800 | 980 | SS304/CS | 1.2-3mm | 2 inch |
| 600L | φ900*900 | 1100 | SS304/CS | 1.2-3mm | 3 inch |
| 800L | φ1000*1000 | 1200 | SS304/CS | 1.2-4mm | 3 inch |
| 1000L | φ1100*1000 | 1320 | SS304/CS | 1.2-5mm | 3 inch |
| 1100L | φ1250*1000 | 1320 | SS304/CS | 1.5-5mm | 3 inch |
| 1200L | φ1300*1000 | 1320 | SS304/CS | 2.0-5mm | 3 inch |
| 1500L | φ1300*1200 | 1400 | SS304/CS | 2.0-5mm | 3 inch |
| 2000L | φ1500*1200 | 1400 | SS304/CS | 3.0-5mm | 3 inch |
Optional customize items: whether is equipped with a jacket, and other options
